BR3 series products

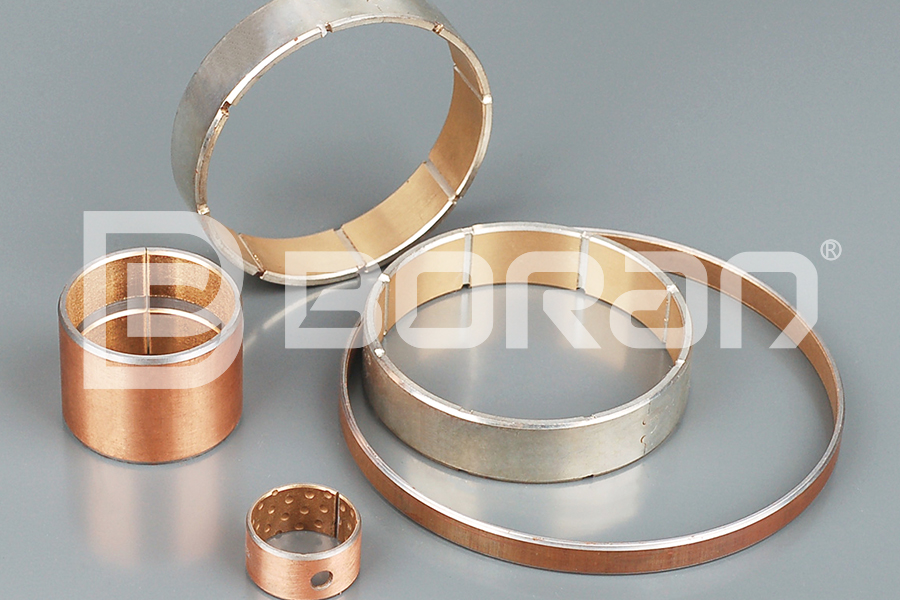

BR3C bimetal bushing
BR3C bimetal bearing is a product with steel plate as the base and CuPb30 material sintered on the surface. Due to its high lead content, the product has good anti seizure and foreign body burial properties.
If the working surface is plated with soft alloy material, it can be used as the main bearing bush, connecting rod bushing and rocker arm bushing of high-speed, medium and low load internal combustion engines; Oil mercury side friction plate.
Metallographic analysis
1. Alloy layer
2. Steel base
Product characteristics&Application area
Product characteristics
- 1. Add oil or grease regularly;
- 2. Wear resistance, low friction coefficient;
- 3. High mechanical strength, strong dimensional stability;
- 4. Strong thermal conductivity;
- 5. Wide temperature range：-40℃～+110℃；
Application area
- It can be used as the main bearing, connecting rod bushing and rocker arm bushing of high-speed, medium and low load internal combustion engines; Oil mercury side friction plate.
| PERFORMANCE INDEX | RELEVANT DATA | |
| Maximum bearing pressure P | 130N/mm2 | |
| Maximum linear speed V | Oil lubrication | 10m/s |
| Maximum PV value | Grease | 2.8N/mm2·m/s |
| Grease | 10N/mm2·m/s | |
| Alloy hardness | 45~60HB | |
| Alloy material | CuPb30 | |
