BR2 series products
BR2 (DX) boundary self-lubricating bushing

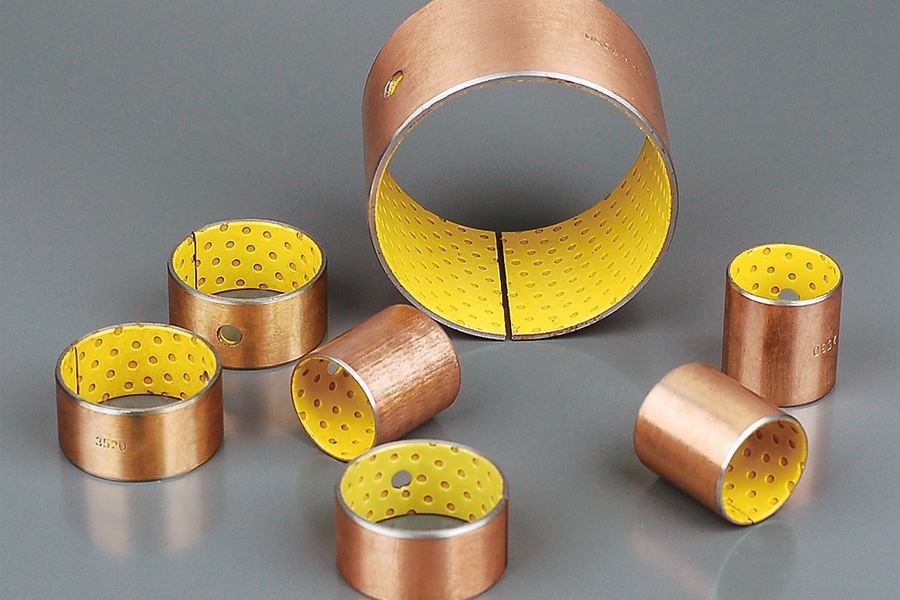

BR2Y metal base boundary lubrication bushing
BR2Y boundary lubrication lead-free bearing is improved on the basis of BR2. Its performance is the same as that of BR2, but its surface does not contain lead. Its application field can be extended to the field with environmental requirements. At present, the product has been used in imported textile equipment, piston pump swing parts, automobile joystick parts and other medium load, medium speed, grease lubrication occasions.
Metallographic analysis
1. PTFE POM
2. Spherical bronze powder
3. Steel back
4. Electroplated coating: copper coating/tin coating
Product characteristics&Application area
Product characteristics
- 1. Add oil or grease regularly;
- 2. Wear resistance, low friction coefficient;
- 3. High mechanical strength, strong dimensional stability;
- 4. Strong thermal conductivity;
- 5. Wide temperature range：-40℃～+110℃ ；
Application area
- At present, the product has been used in imported textile equipment, piston pump swing parts, automobile joystick parts and other medium load, medium speed, grease lubrication occasions.
| performance index | relevant data | |
|---|---|---|
| Maximum bearing pressure P | Move load | 250N/mm2 |
| Quiet load | 140N/mm2 | |
| Maximum linear speed V | Grease | 2.5m/s |
| Maximum PV value | Grease | 2.8N/mm2·m/s |
| Friction coefficient | Grease | 0.05-0.25μ |
| Working temperature | -40℃~+130℃ | |
| Thermal conductivity | 4W/m·k | |
| Coefficient of linear expansion | 12×10-6·K-1 | |
